E-2C Hawkeye, VAW-123 "Screwtops". BuNo. 163693, AB 600. by Dave Fassett
Brand: Revell of Germany
Scale: 1/144
Modeler: Dave Fassett



AircraftProfilePrints.com - Museum Quality Custom Airctaft Profile Prints

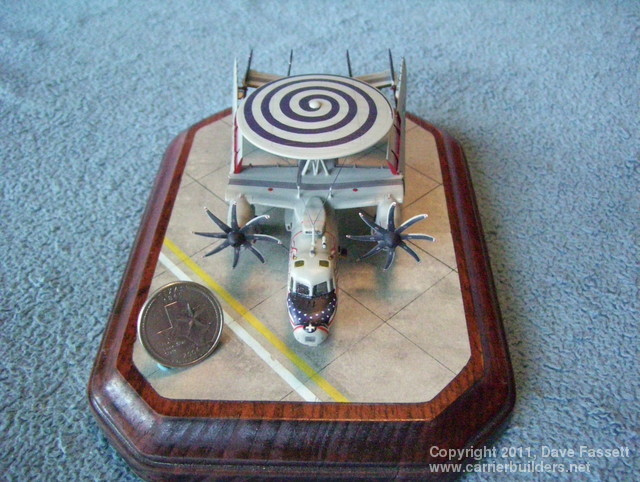

This is Revell of Germany's 1/144 E-2C Hawkeye (kit# 04012). The kit itself is excellent and went together without any real problems. I used Retrowings NP200 propellers and a combination of Retrowings RW44003 set and Wolfpacks WP14404 set for the wing fold. The rest of the extras I scratch built and are listed below. The model was painted using Model Master Acrylic's. Weathering was accomplished with a combination of pastels and artist oils. The markings and stencils are custom and would not have been possible with out the help of my great friends Darth and Joseph Osborn. If you have any questions or concerns please feel free to contact me.

Scratch built/rebuilt items:

•Crew entry door.

•Fuselage interior.

•Rebuilt main landing gear struts.

•Added full intakes on engine nacelles, along with exhaust cans.

•Rebuilt main wheel wells.

•All antennas replaced and missing ones added (upper and lower).

•Repositioned elevators.

•Added static wicks to ailerons, elevators, and rudders.

•Cut nose open and built complete PDS antenna, along with landing, and taxi lights.

•Added trailing wire antenna.

•Added wind shield wipers.

•Added GPS antenna.

•Rebuilt arresting hook.

•Added tie down points to landing gear, and fuselage.

•Added wing fold indicators to top of engine nacelles.

•Added arch antennas to rotodome base.

•Rebuilt crew compartment cooling generator.

•Added HF antenna wires.

•Wheel chocks.

•Remove before flight flags.

•Added gold plating to cockpits upper hatches and side windows.

•Replaced wing tip navigation lights with clear lenses.

•Built anti-skip pad.

•Boxed in arresting gear bay.

Thanks for looking,

Dave Fassett
